Product Details:

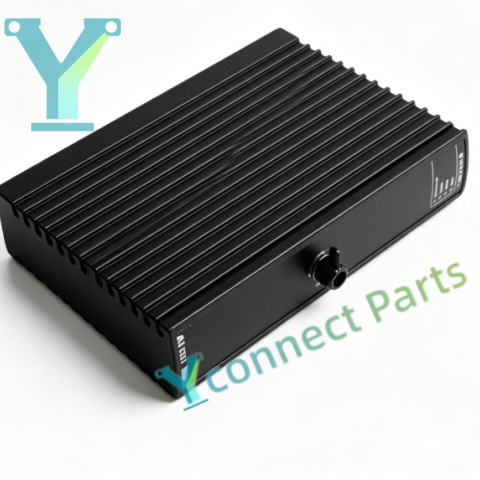

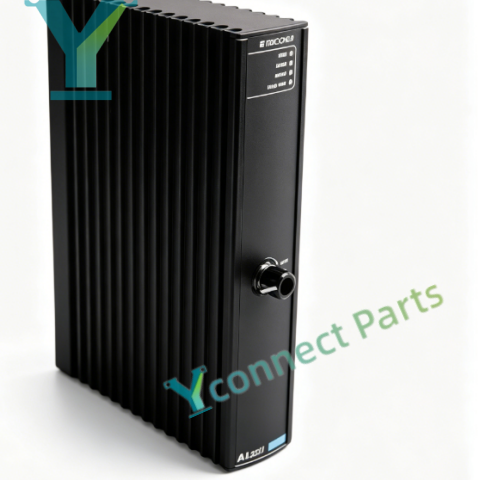

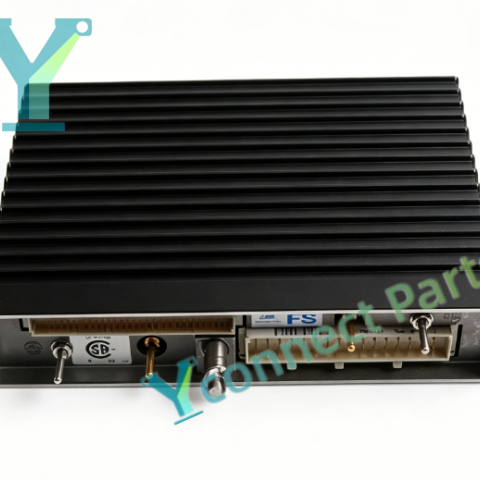

TRICONEX 3351 also known as AI3351 is a 32-channel commoned analog input module built on triple modular redundancy (TMR) architecture for Triconex Trident safety instrumented systems (SIS). This TMR safety I/O module collects 4-20mA analog current signals from field pressure, temperature and flow transmitters, and converts analog signals into digital data and transmits to the Tricon main controller. The Tricon analog input module supports 2~22mA signal range, with 12-bit resolution and total channel scan time less than 1ms for high-speed signal acquisition. Each channel is equipped with isolation design to suppress ground loop noise and electrical interference from field instruments. Continuous built-in channel diagnostics can detect open circuit, short circuit and internal hardware faults, and upload fault alarms to the Tricon engineering workstation in real time. The module supports hot swap operation, maintenance personnel can replace the faulty module online without shutting down the whole safety system. Front panel LED indicators including PASS, FAULT and FIELD PWR display module health status and channel signal state for fast on-site troubleshooting. It adopts 2-out-of-3 voting logic to eliminate single point of failure and fully meets SIL3 safety integrity level requirements. It can be installed in standard Trident rack and cooperates with Trident controller and other I/O modules. Widely applied in oil & gas, petrochemical, chemical and power industries, this TRICONEX 3351 analog input module is used for ESD emergency shutdown, fire and gas monitoring and other safety-critical control systems.

Specifications:

Manufacturer: TRICONEX (Schneider Electric)

Model: 3351 (AI3351)

Product Type: Trident 32-channel Commoned Analog Input Module

System Compatibility: Trident TMR Safety Instrumented System

Input Channels: 32 commoned analog input channels

Signal Range: 4-20mA, operating range 2~22mA DC

Resolution:12-bit

Accuracy: ±0.15% full scale

Scan Time: <1ms for all channels

Architecture: Triple Modular Redundancy(TMR), 2-out-of-3 voting

Safety Level: SIL3 certified

Source Impedance: 180Ω

Diagnostics: Open circuit, short circuit and hardware fault detection

Feature: Hot swappable

Status Indicator: PASS, FAULT, FIELD PWR LED indicators

Mounting: Trident rack plug-in

Operating Temperature: 0℃ ~ +60℃

Humidity: 5% to 95% non-condensing

Certifications: IEC61508, SIL3, CE
